Name: Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms
Brand: SuperATV
Price: 854.75 USD
Availability: InStock

Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms

$854.75

Year

2016-2021

2022+

Need Pre-Installed Ball Joints?

Heavy Duty 4340 Chromoly Steel

Keller Preformance

I will reuse the current ball joints

Fast Shipping

30 Day Money Back Guarantee

In stock, ready to ship
Inventory on the way

[{"id":45654138814627,"title":"2016-2021 \/ Heavy Duty 4340 Chromoly Steel","option1":"2016-2021","option2":"Heavy Duty 4340 Chromoly Steel","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms - 2016-2021 \/ Heavy Duty 4340 Chromoly Steel","public_title":"2016-2021 \/ Heavy Duty 4340 Chromoly Steel","options":["2016-2021","Heavy Duty 4340 Chromoly Steel"],"price":85475,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45654138847395,"title":"2016-2021 \/ Keller Preformance","option1":"2016-2021","option2":"Keller Preformance","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms - 2016-2021 \/ Keller Preformance","public_title":"2016-2021 \/ Keller Preformance","options":["2016-2021","Keller Preformance"],"price":105475,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45654138880163,"title":"2016-2021 \/ I will reuse the current ball joints","option1":"2016-2021","option2":"I will reuse the current ball joints","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms - 2016-2021 \/ I will reuse the current ball joints","public_title":"2016-2021 \/ I will reuse the current ball joints","options":["2016-2021","I will reuse the current ball joints"],"price":44495,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45654138912931,"title":"2022+ \/ Heavy Duty 4340 Chromoly Steel","option1":"2022+","option2":"Heavy Duty 4340 Chromoly Steel","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms - 2022+ \/ Heavy Duty 4340 Chromoly Steel","public_title":"2022+ \/ Heavy Duty 4340 Chromoly Steel","options":["2022+","Heavy Duty 4340 Chromoly Steel"],"price":85475,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45654138945699,"title":"2022+ \/ Keller Preformance","option1":"2022+","option2":"Keller Preformance","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms - 2022+ \/ Keller Preformance","public_title":"2022+ \/ Keller Preformance","options":["2022+","Keller Preformance"],"price":105475,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45654138978467,"title":"2022+ \/ I will reuse the current ball joints","option1":"2022+","option2":"I will reuse the current ball joints","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms - 2022+ \/ I will reuse the current ball joints","public_title":"2022+ \/ I will reuse the current ball joints","options":["2022+","I will reuse the current ball joints"],"price":44495,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

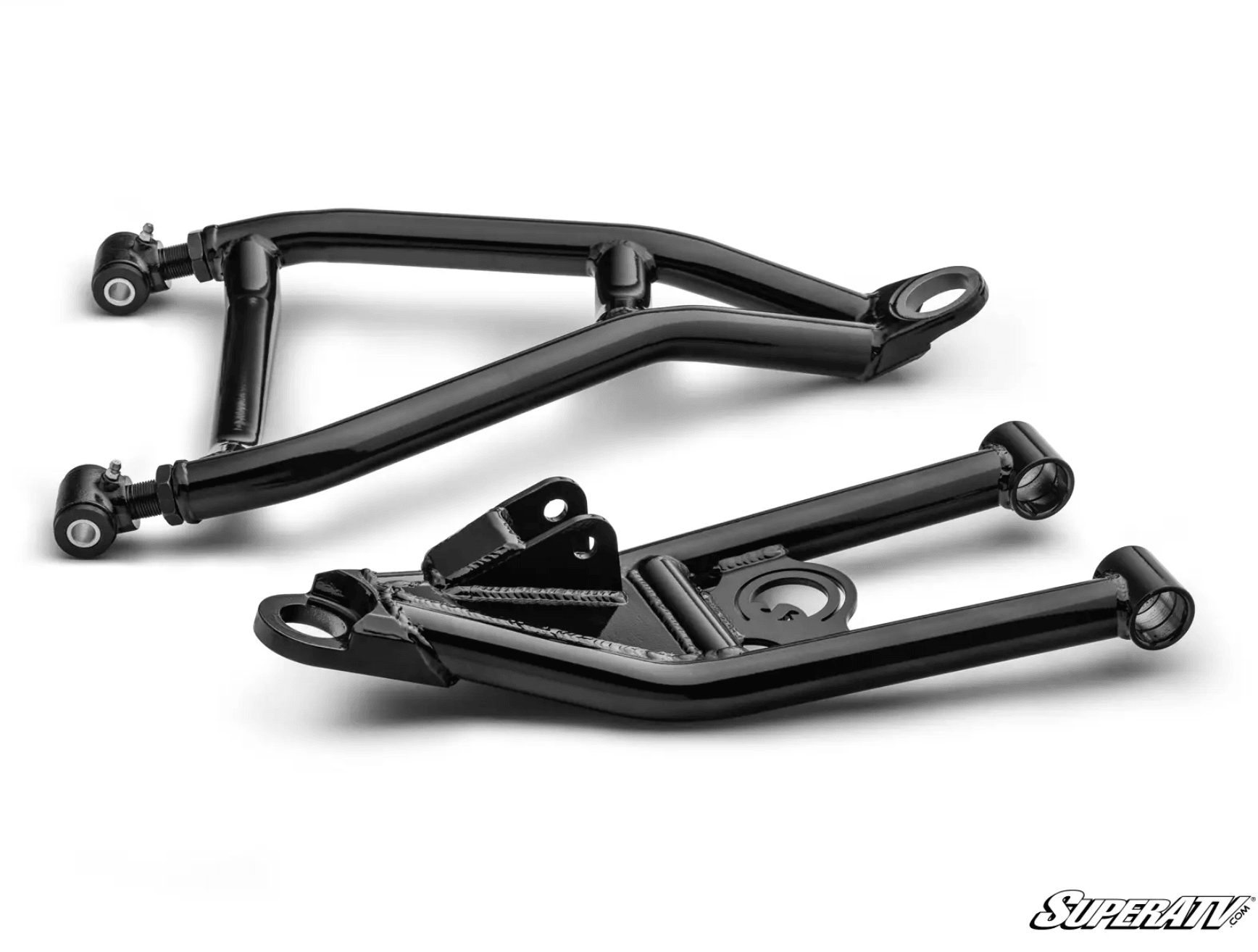

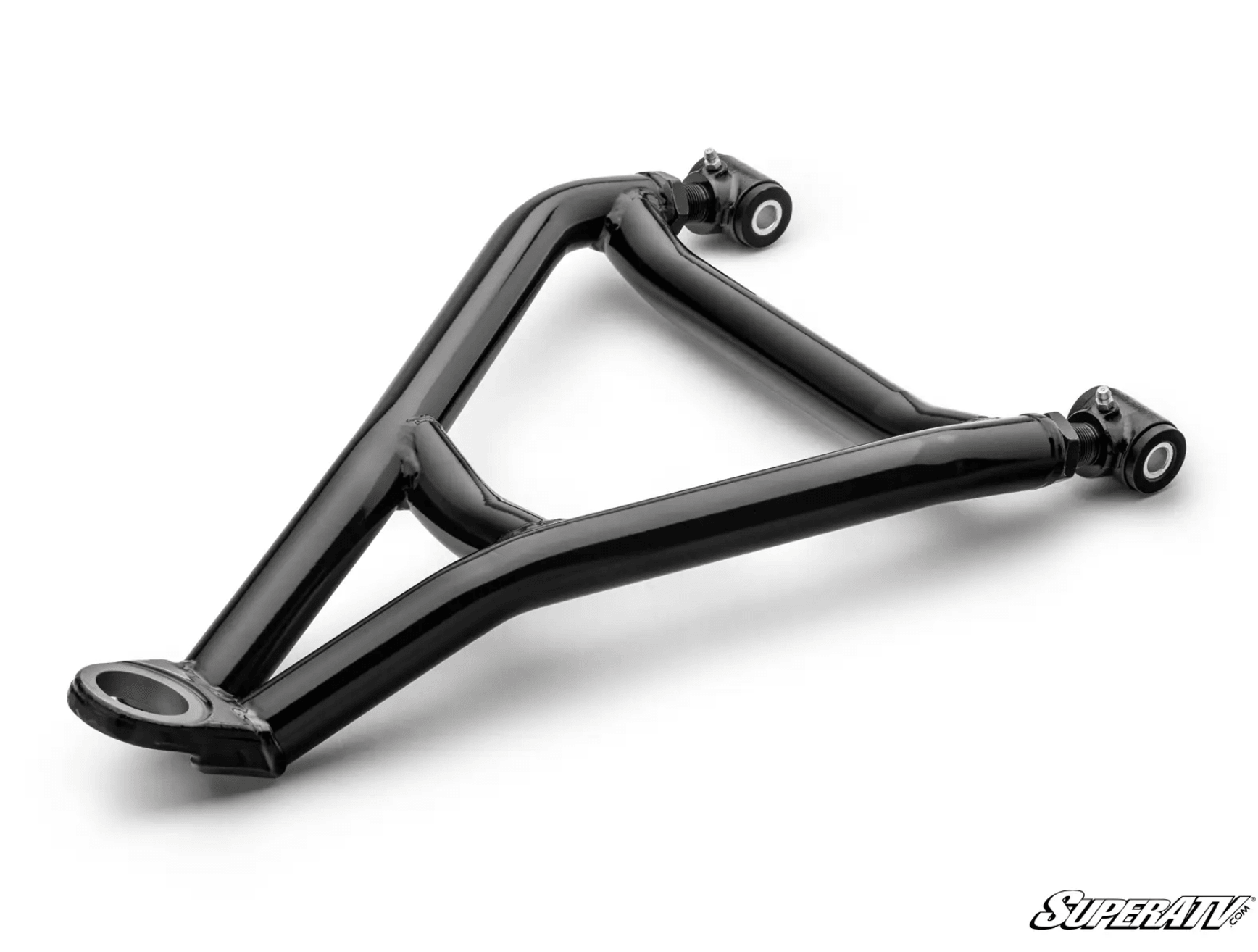

Honda Pioneer 1000 High Clearance Forward 1.5 in Offset A-Arms.

Product Details

2 in additional clearance.
1.5 in forward offset.
Includes all new UHMW bushings with sleeves.
1.25 in tube.
Maximum tire size : 31 in.
Full camber adjustability.

Fitment

Honda Pioneer 1000 : 2016+.
Honda Pioneer 1000 Deluxe : 2016+.
Honda Pioneer 1000 limited edition : 2017+.
Honda Pioneer 1000-5 : 2016+.
Honda Pioneer 1000-5 Deluxe : 2016+.
Honda Pioneer 1000-5 limited edition : 2017+.
Honda Pioneer 1000-6 : 2023+.

Installation & Fitment Notes

Pioneer 1000 or Pioneer 1000-5 limited edition models will require Rhino 2.0 axles.
You may need wheel spacers when running 12 in wheels.
If you want to run offset a-arms with our 3 in lift kit, you must have Rhino brand axles.
Stock axles will bind.
Does not fit trail models if using with a lift kit.
Note: you must re-use your stock ball joints if you don't select a pre-installed ball joint at checkout.
Check your exact model, year and mounting configuration against the application details before ordering.

Choose the required option before ordering; the selected option determines the finish, size or configuration supplied.
